Case Study: Signage & Wayfinding for Johor Golf & Country Club, Johor Bahru
Johor Golf & Country Club (JGCC) is one of Johor Bahru’s most established private members’ clubs, with an 18-hole championship course, ballroom, driving range, and Royal Suite facilities. A&T was engaged to deliver the complete exterior signage and wayfinding package for the club’s development—covering building identification wall signs, a backlit crest logo, wall-mounted directional lettering, and a network of road direction signs across the site. Every element was produced in 5mm aluminium laser-cut construction with a 2K gold colour spray finish, maintaining the club’s premium gold and navy brand palette throughout the site.
Project Overview
2K gold spray finish throughout
Building ID walls, backlit logo, road signs, wall lettering
Johor Golf & Country Club, JB
The club’s signage brief called for a consistent premium finish across all wayfinding and identification elements—no standard box-up lettering, no printed panels. Every sign on the site uses the same material language: 5mm aluminium sheet, laser-cut to shape, finished in 2K gold spray. Road direction signs are mounted on 100mm square aluminium post structures with aluminium box blade arms. The result is a wayfinding system that reads as designed rather than fabricated.
Scope of Work
- Clubhouse entrance wall sign—JGCC shield crest with LED halo and “CLUBHOUSE” 5mm aluminium laser-cut gold lettering.
- Ballroom building identification wall sign—JGCC shield crest and “BALLROOM” 5mm aluminium laser-cut gold lettering.
- Wall-mounted directional lettering—“BALLROOM” and “DRIVING RANGE” with directional chevrons in a gold finish.
- Road direction signs—finger-arm signs for Clubhouse, Ballroom, Driving Range, Royal Suite, Golf Course, and Loading Bay.
The Signage—In Detail
Clubhouse Entrance Wall Sign—Backlit Crest + 5mm Laser-Cut Gold Lettering
5mm Alum Laser-Cut · 2K Gold Spray · LED Backlit Crest

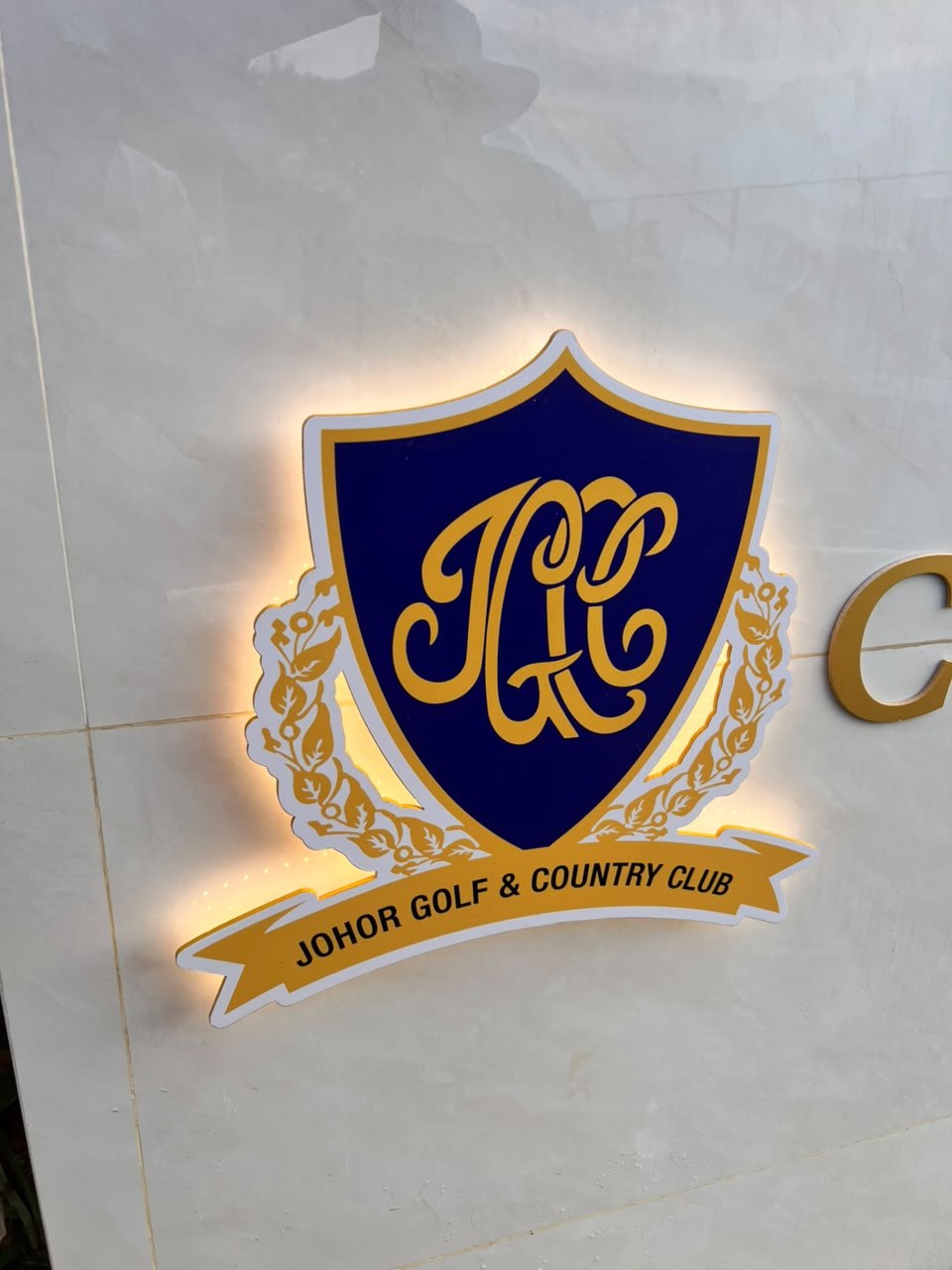

The primary entrance identification for the clubhouse is built around two elements working together on the white rendered feature wall: the JGCC shield crest and the word “CLUBHOUSE” in 5mm laser-cut aluminium gold lettering. The crest is produced as a die-cut shape with internal LED backlighting, creating a warm halo glow around the full perimeter of the shield—visible both in daylight and at night. The “CLUBHOUSE” lettering beside it is non-lit, relying on the 2K gold finish to catch ambient and ground-level spot lighting.

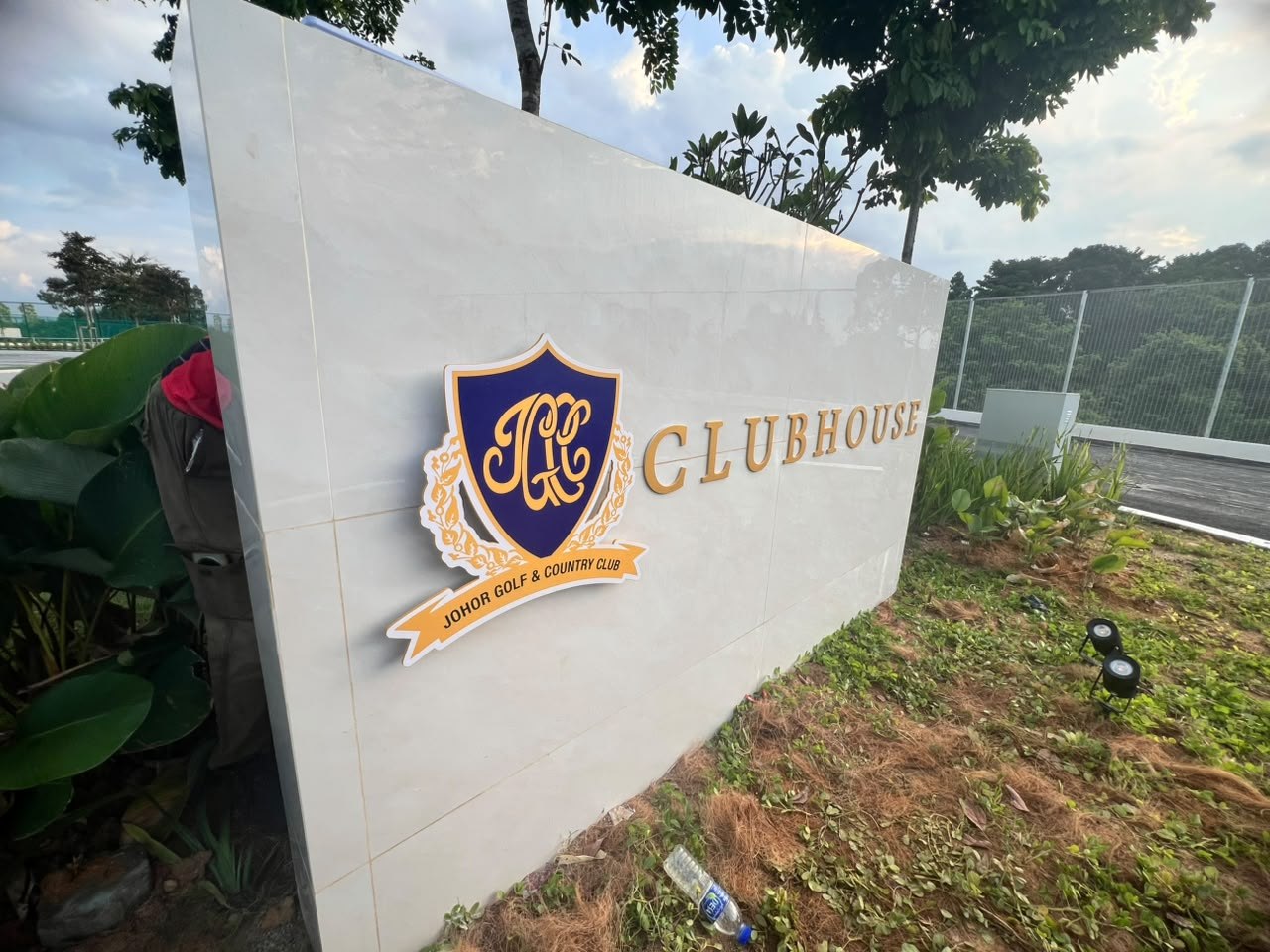

Clubhouse entrance wall—JGCC backlit crest with LED halo + “CLUBHOUSE” 5mm laser-cut gold lettering · Made by A&T, JB
Ballroom Building Identification Wall Sign—5mm Laser-Cut Gold Lettering
5mm Alum Laser-Cut · 2K Gold Spray
The Ballroom building uses the same wall sign format as the Clubhouse—JGCC crest on the left and facility name in 5mm laser-cut gold lettering on the right—applied to a large white rendered panel wall. This consistent format means members and guests read each facility sign in the same way: the crest confirms the club and the name confirms the destination.

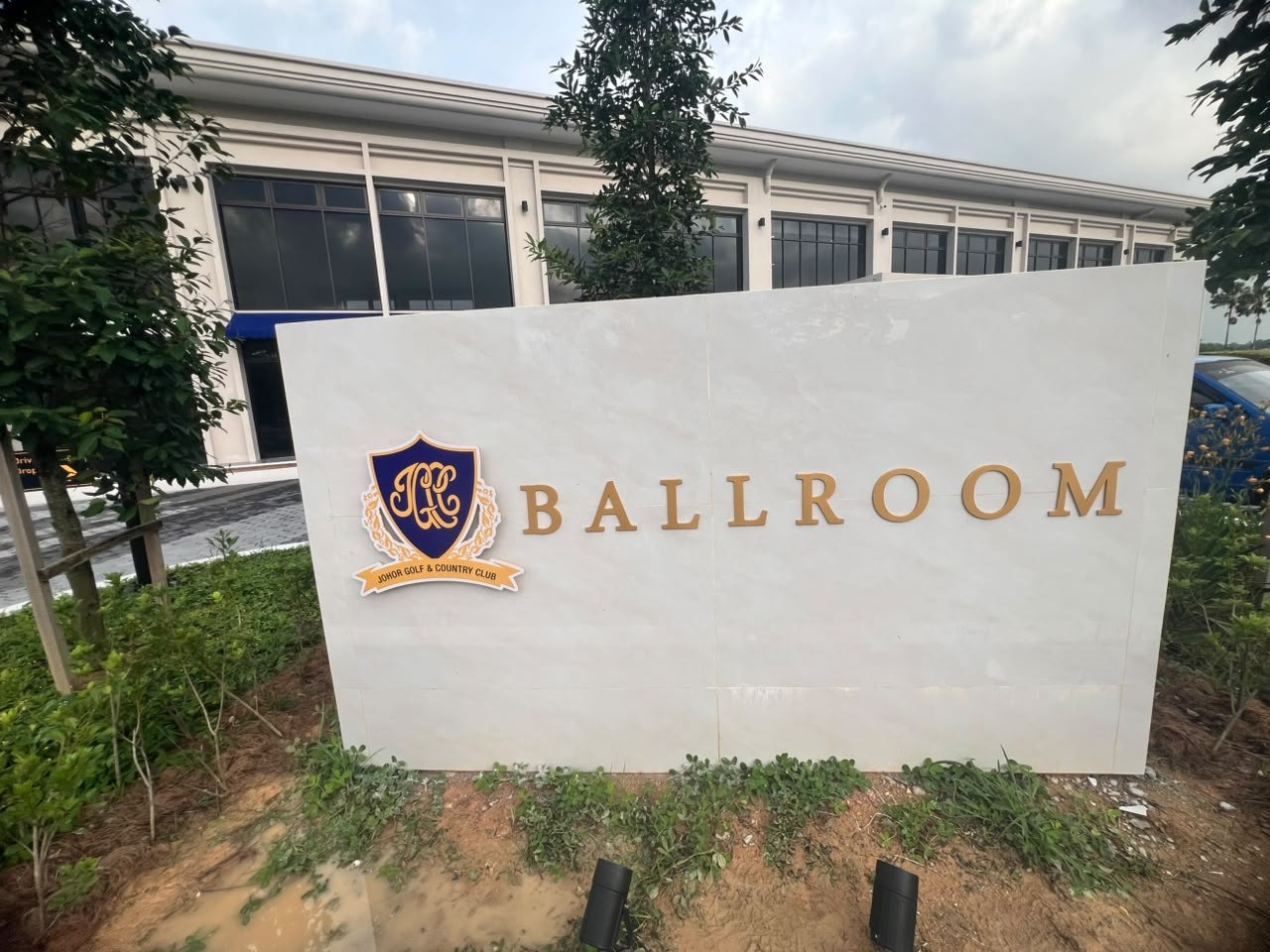

Ballroom building identification wall—JGCC crest + “BALLROOM” 5mm laser-cut 2K gold lettering · Made by A&T, JB
Wall-Mounted Directional Lettering—5mm Aluminium Die-Cut
5mm Alum Laser-Cut · 2K Gold Spray · Wall-Mounted
At pedestrian decision points, directional information is delivered via 5mm aluminium laser-cut lettering mounted directly onto the rendered wall surface. Gold text and directional chevrons indicate “BALLROOM” and “DRIVING RANGE.” Mounting the letters directly to the wall keeps the finish clean and architectural, with no visible backing board or frame.

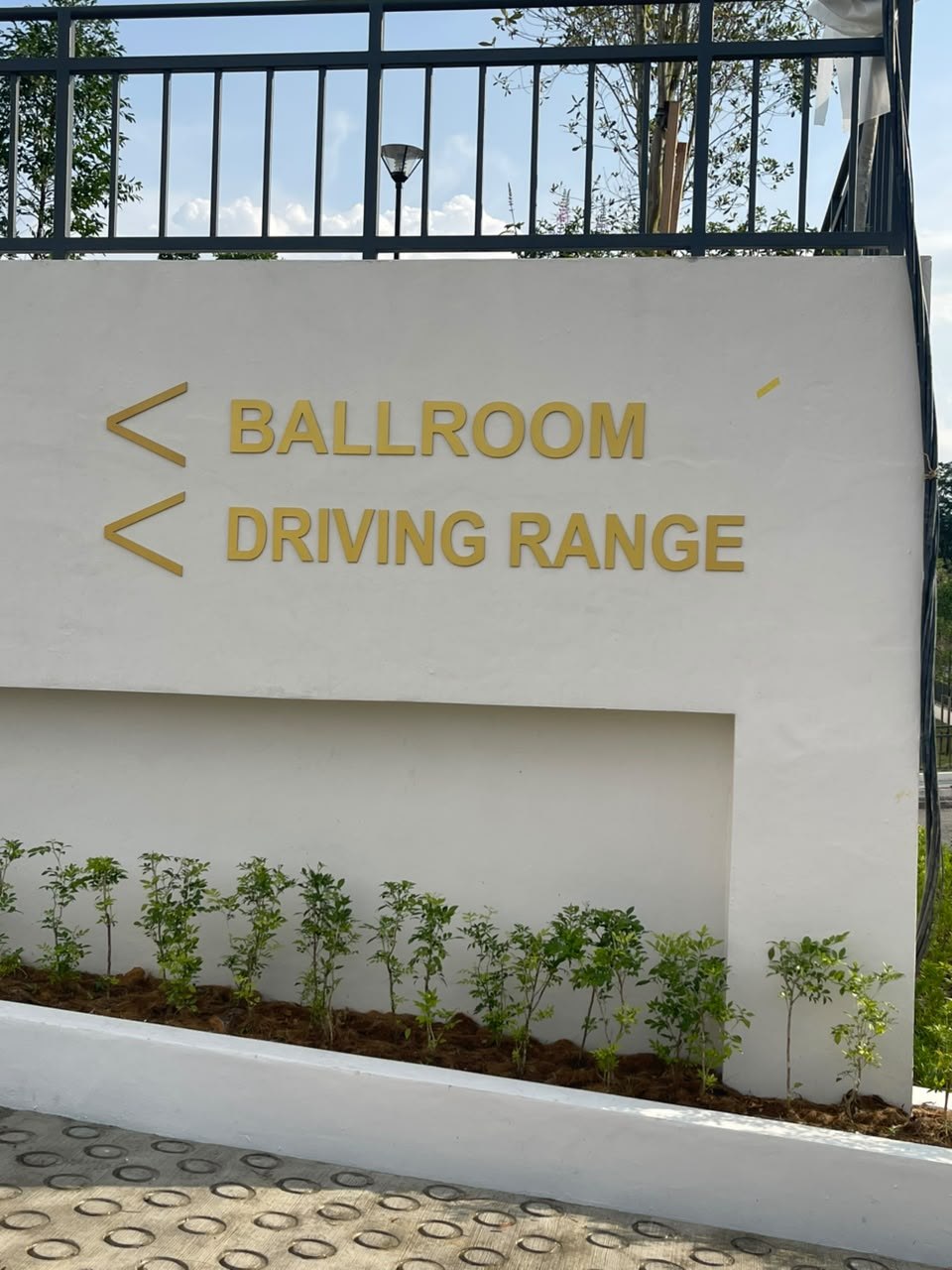

Wall-mounted directional lettering—“BALLROOM / DRIVING RANGE” 5mm aluminium laser-cut, 2K gold spray · Made by A&T, JB
Road Direction Signs—100mm Aluminium Post with Finger Blade Arms
100mm Alum Square Post · Alum Box Structure · Alum Box-Up Lettering · 2K Gold Spray
The road-level wayfinding uses freestanding direction signs mounted on 100mm square aluminium posts with aluminium box blade arm structures. Each blade carries a destination name and directional arrow in gold aluminium box-up lettering. Signs were installed at key vehicle decision points for the Clubhouse, Ballroom, Driving Range, Royal Suite, Golf Course, and Loading Bay.
Using aluminium box-up lettering rather than printed text gives the gold finish depth and keeps it consistent with the wall signs and die-cut lettering across the rest of the site.

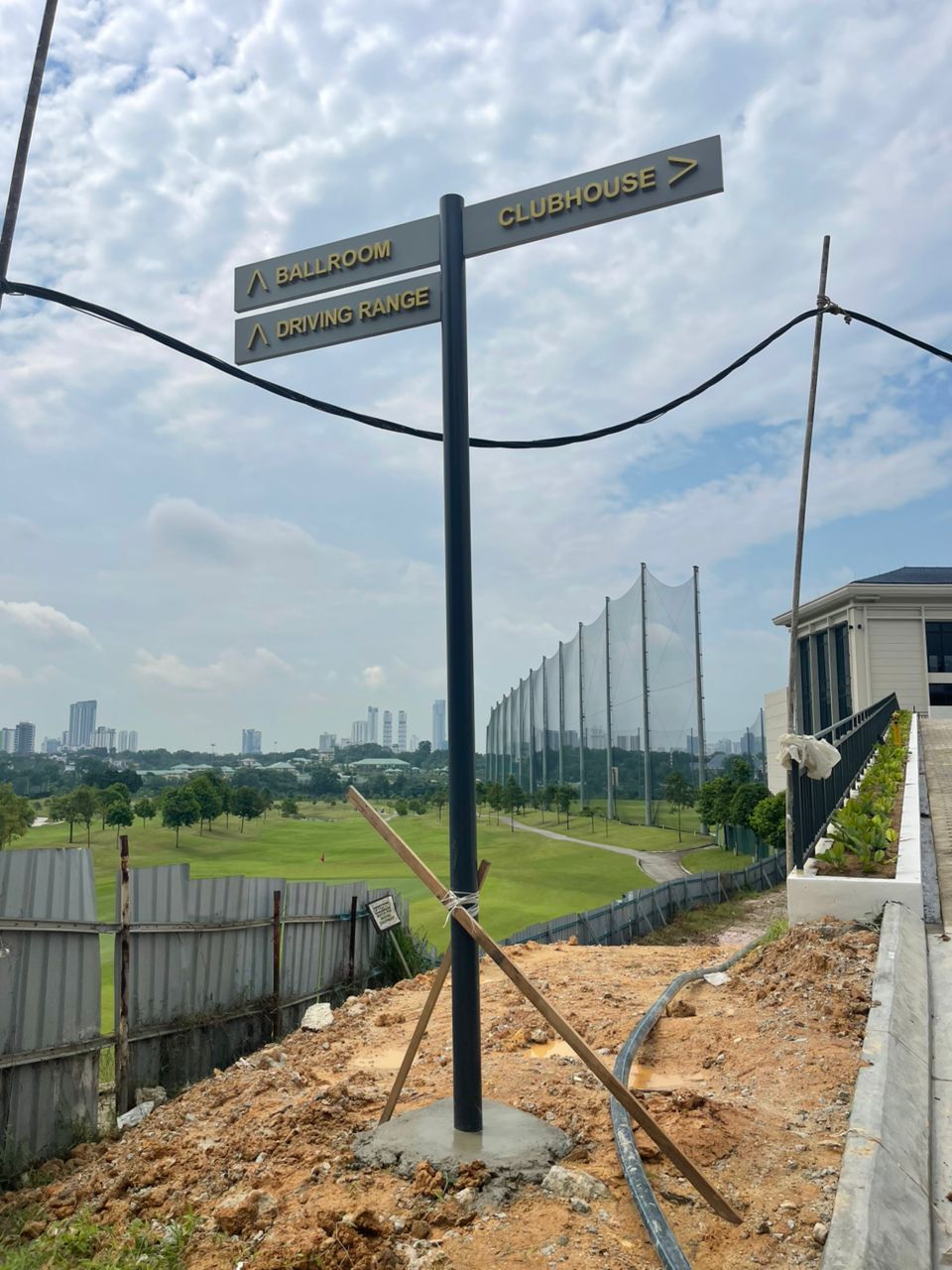

Road direction signs—multi-blade and single-blade formats on 100mm aluminium square posts · Made by A&T, JB

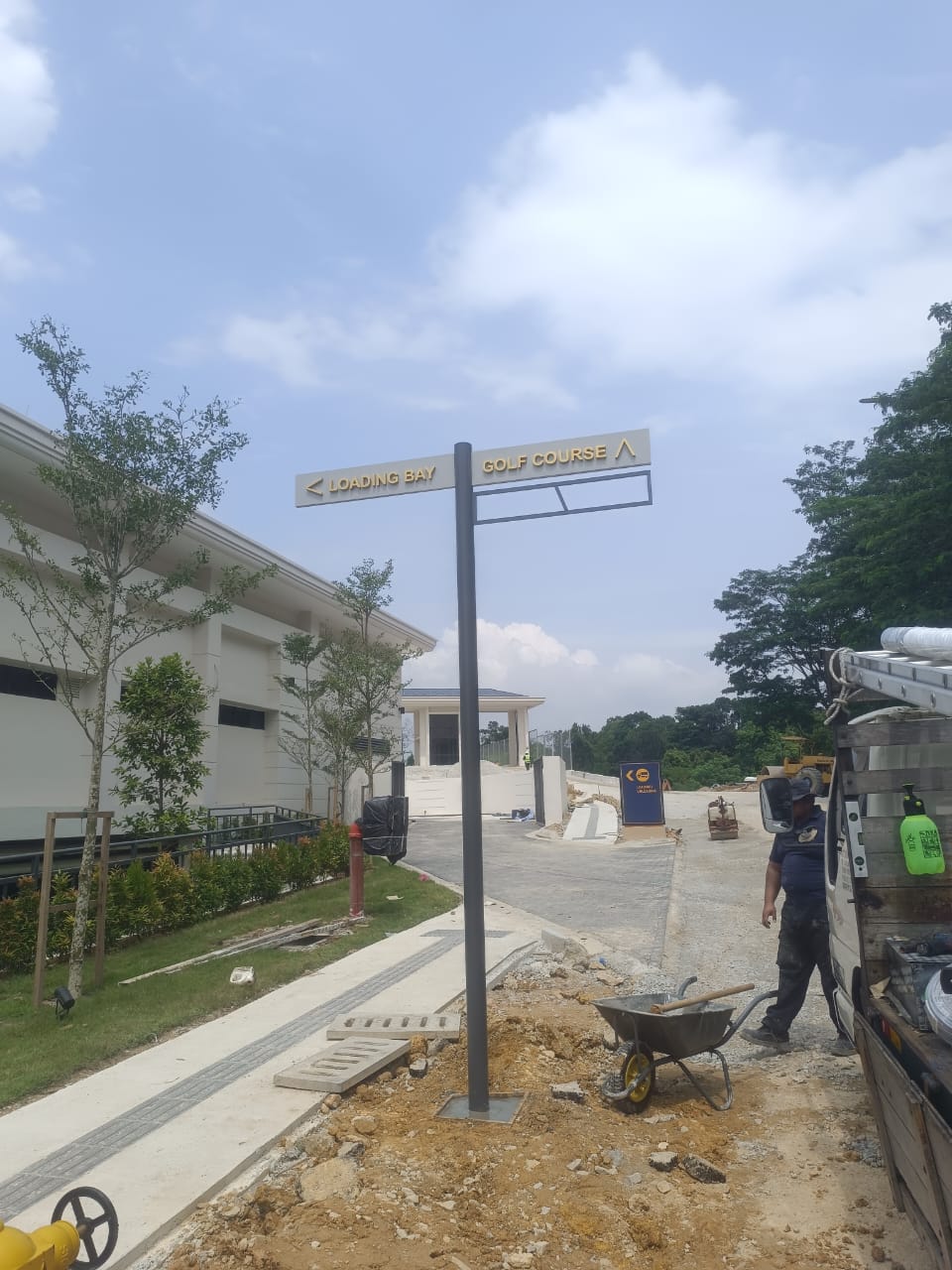

Road sign installation—“LOADING BAY / GOLF COURSE” finger blades being installed on site · A&T team, JB
What This Project Demonstrates
Material consistency across sign types is what makes a site feel premium
Road signs, wall lettering, building identification panels, and a backlit crest logo all use 5mm laser-cut aluminium and the same 2K gold spray finish. The result is a site where the signage reads as part of the architecture rather than something applied on top of it.
Backlit logo crests require precise die-cutting
The JGCC crest is a complex heraldic shape. Producing it as a backlit sign requires an accurate profile so the LED halo illuminates evenly around the perimeter. Laser cutting follows the exact vector outline of the artwork at any scale. A&T handles complex die-cut shapes in-house using aluminium and acrylic.
Frequently Asked Questions
What is 2K gold spray and how does it differ from standard gold paint?
2K paint is a two-component coating system consisting of a base and hardener. Once cured, it produces a harder, more durable surface than standard single-component paint. It is well suited to exterior signage exposed to Malaysia’s heat, humidity, and UV.
What thickness of aluminium is typically used for laser-cut signage lettering?
5mm aluminium is commonly used for exterior die-cut lettering and sign elements. It provides sufficient structural rigidity without becoming unnecessarily heavy. Thinner aluminium is suitable for smaller interior applications, while thicker plate is used for heavy structural elements.
How are road direction signs on aluminium poles installed and anchored?
The 100mm square aluminium post is set into a concrete foundation that anchors it against wind loading. Footing depth and size depend on the sign height and blade area. The blade arms are welded or bolted to the post, then the sign blades are fixed on site.
Can A&T produce a backlit version of a crest, logo, or complex shape?
Yes. The shape is laser-cut from aluminium or acrylic, mounted off the wall with spacers, and fitted with LEDs behind the sign body. A&T can work from existing vector artwork or redraw a crest for production.
Does A&T handle signage packages for private clubs, hotels, and hospitality developments in JB?
Yes. A&T works with main contractors and developers on hospitality, club, and resort signage packages in Johor Bahru. Production is handled in-house at the Ulu Tiram factory.
