Case Study: Complete Signage & Wayfinding Package for Kampung Sungai Melayu, Gelang Patah JB
Kampung Sungai Melayu is an eco-tourism village in Gelang Patah, Johor Bahru — a heritage and recreational development under Majlis Bandaraya Iskandar Puteri (MBIP) carrying The Johor Collection brand identity. A&T was engaged by the main contractor to deliver the complete signage and wayfinding package across the entire site — covering outdoor landmark lettering, entrance signage, directional pylons, site map panels, retail fascia, indoor branding, counter identification, and regulatory notice boards throughout the development.
Project Overview
The development spans a waterfront eco-tourism area featuring visitor facilities, retail outlets, a jetty, landscaped public spaces, and heritage attractions. The signage brief covered the full site — from the prominent waterfront landmark structure visible from the river, through the vehicle entrance gateway, across the visitor facilities building, and into the individual retail units within the development.
Scope of Work
- Waterfront landmark lettering — “KAMPUNG SUNGAI MELAYU” 3D aluminium box-up lettering in gold finish, mounted on the circular waterfront pavilion structure
- Entrance gateway lettering — “SELAMAT DATANG KE KG. SG. MELAYU” stainless steel lettering installed across the full width of the entrance archway
- Directional totem pylon — multi-destination wayfinding pylon in the site’s brown and gold colour scheme, listing all key facilities and destinations within the village
- Site map panel — large-format PETA / MAP display board showing the full village layout with legend and facility icons
- Retail shop fascia — “KEDAI SERBANEKA LELURI MART” frontlit fascia signboard with circular pictogram wayfinding icon on exterior bracket
- Round projecting sign — “THE JOHOR COLLECTION” circular blade sign mounted on bracket arm at the visitor centre entrance
- Indoor 3D wall lettering — “THE JOHOR COLLECTION” full-colour 3D acrylic lettering mounted on the interior feature wall
- Counter identification panel — “KAUNTER PEMBAYARAN / PAYMENT COUNTER” stainless steel panel with etched text, mounted on the payment counter fascia
- Regulatory notice boards — Jabatan Landskap “Sila Ambil Perhatian” rule boards in multiple sizes, installed at the park area and waterfront deck
- Toilet identification signs — site-themed toilet icon plaques matching the development’s brown colour palette
- No smoking signs — “Dilarang Merokok” notice panels mounted on structural columns throughout the facility
The Signage — In Detail

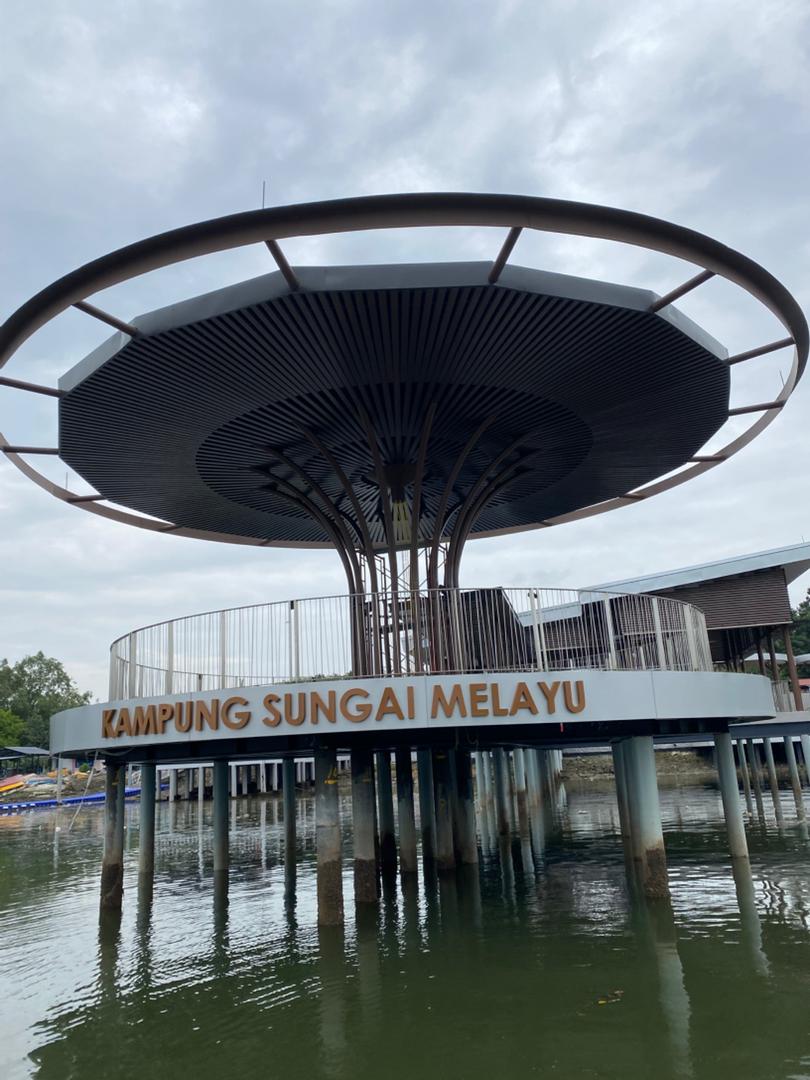

Waterfront Landmark Lettering — 3D Aluminium Box-Up, Gold Finish
The most visually prominent element of the project is the “KAMPUNG SUNGAI MELAYU” lettering mounted on the circular waterfront pavilion structure built over the river. The letters are fabricated in 3D aluminium box-up with a warm gold finish — complementing the brown and bronze material palette of the pavilion’s architectural structure. Positioned at water level and visible from the surrounding riverfront, this landmark sign functions as both the site’s primary identifier and a photography focal point for visitors arriving by boat or approaching along the riverbank.
Waterfront landmark — “KAMPUNG SUNGAI MELAYU” 3D aluminium box-up gold lettering on circular riverfront pavilion · Made by A&T, JB

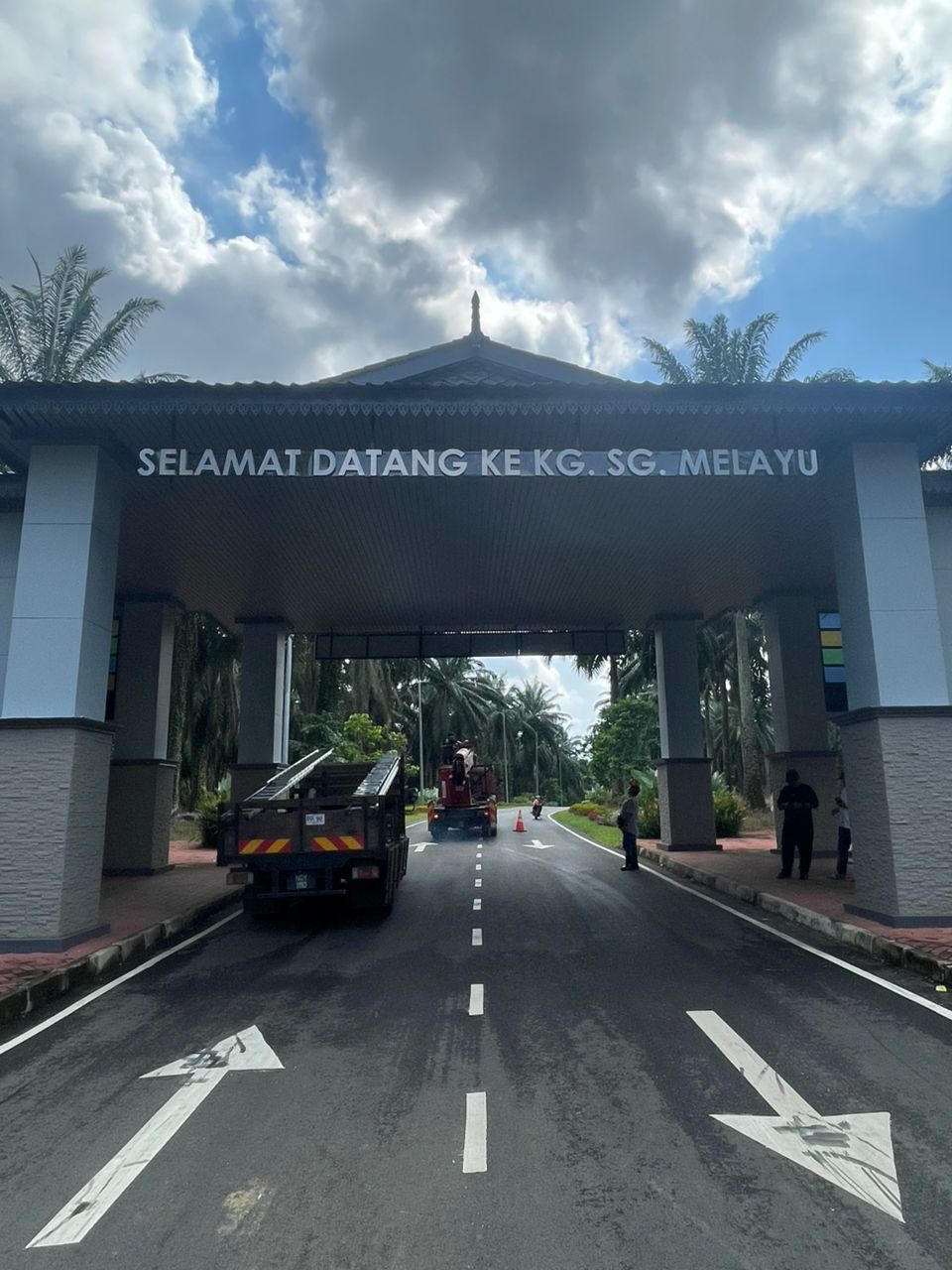

Entrance Gateway Lettering — Stainless Steel
At the vehicle entrance to the village, A&T installed full-width stainless steel lettering spelling “SELAMAT DATANG KE KG. SG. MELAYU” across the underside of the entrance archway. The stainless steel finish reads clearly against the architectural arch structure and is consistent with the premium material specification used throughout the development. The installation required elevated access to position and fix the individual letters across the full span of the gateway structure.
Entrance gateway — “SELAMAT DATANG KE KG. SG. MELAYU” stainless steel lettering across full archway span · Made by A&T, JB

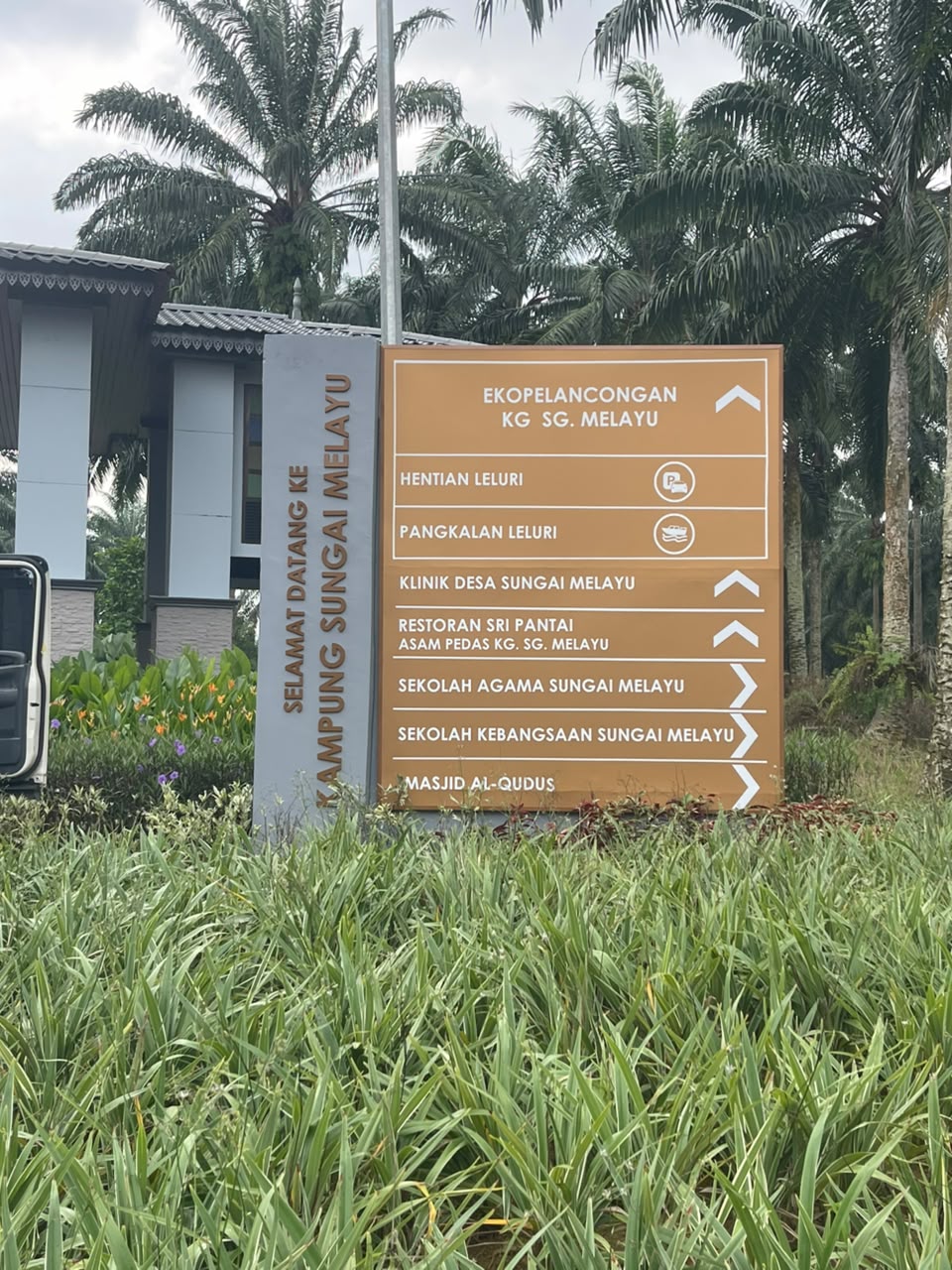

Directional Totem Pylon
A freestanding directional totem pylon was installed at a key decision point within the site, listing all major facilities and destinations within the village — including Ekopelancongan Kg. Sg. Melayu, Hentian Leluri, Pangkalan Leluri, Klinik Desa, Restoran Sri Pantai, Sekolah Agama, Sekolah Kebangsaan, and Masjid Al-Qudus. The pylon uses the site’s signature dark brown panel with gold text and white directional chevrons, with a vertical side column carrying the welcome text and village name in a complementary format. This type of consolidated directional pylon is standard for developments with multiple facilities across a spread-out site, allowing visitors to orient themselves at a single point rather than searching for individual facility signs.
Directional totem pylon — multi-destination wayfinding in site brown and gold palette · Made by A&T, JB

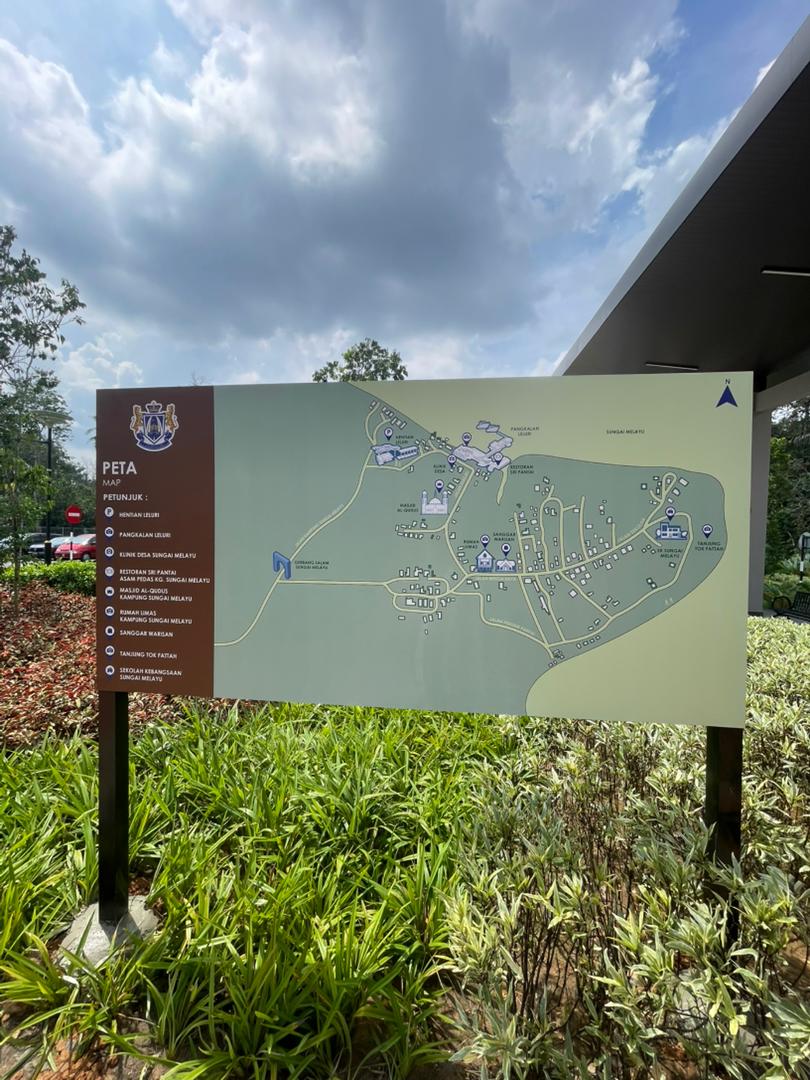

Site Map Panel — PETA / MAP
A large-format site map panel was installed at the visitor arrival point, displaying the complete layout of Kampung Sungai Melayu with a full legend identifying all key locations — from the jetty and car park to the masjid, schools, heritage homes, and recreational areas. The panel uses a muted green illustrated map style with the MBIP crest, bilingual labelling, and a north compass indicator. Panels of this type are standard specification for government and municipal recreational developments, and A&T produces them in-house using UV-printed aluminium composite panel construction for outdoor durability.
Site map panel — PETA / MAP large-format display with full village layout and legend · Made by A&T, JB

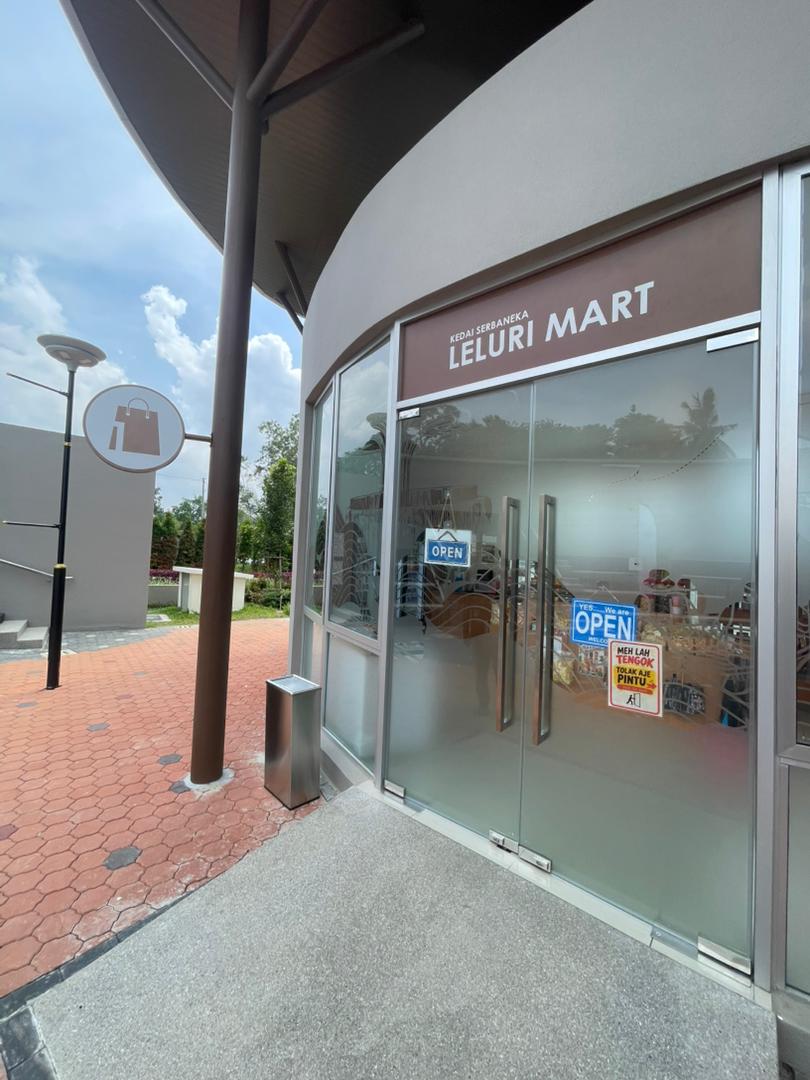

Retail Shop Fascia — Leluri Mart
The Leluri Mart convenience store within the development received a complete frontlit fascia signboard — “KEDAI SERBANEKA LELURI MART” — in the brand’s mauve and white colour scheme, integrated flush with the shopfront. An external circular pictogram sign on a bracket arm provides additional visual identification from the approach path, consistent with the wayfinding icon system used throughout the site. This combination of a primary fascia sign and a secondary projecting icon marker is a practical solution for retail units within a larger development where the shopfront may not be directly visible from the main circulation route.
Retail fascia — “KEDAI SERBANEKA LELURI MART” frontlit shopfront sign with circular icon bracket marker · Made by A&T, JB

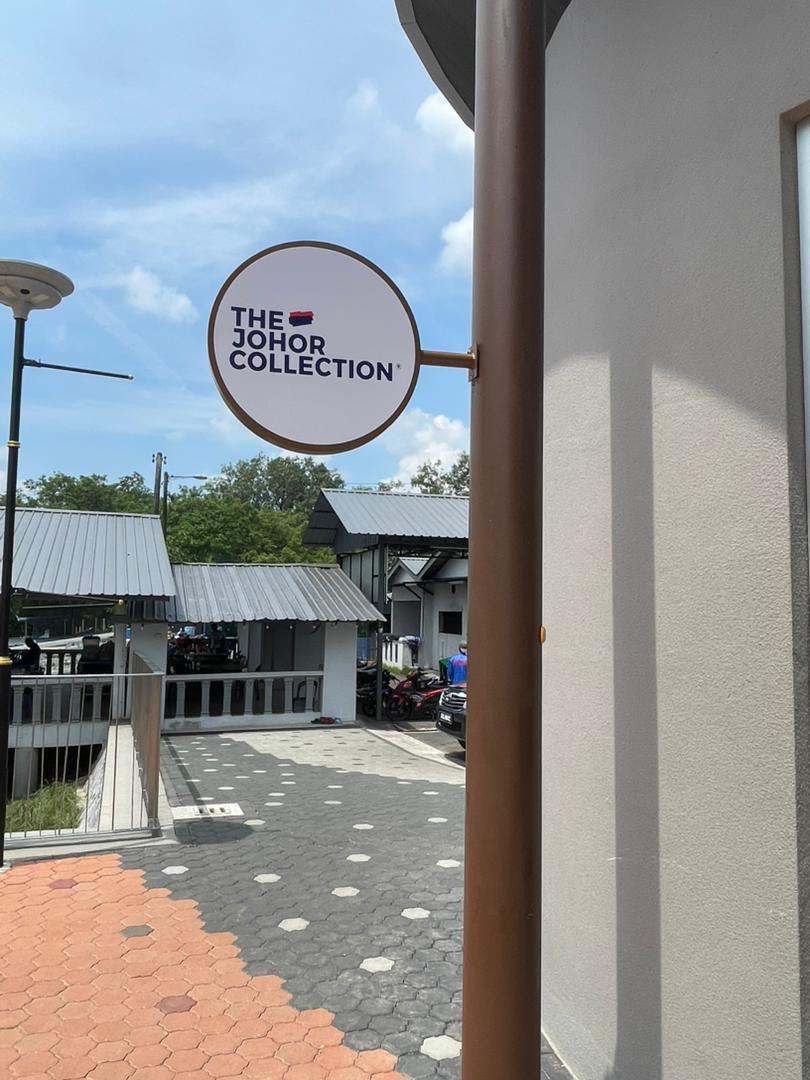

Round Projecting Sign — The Johor Collection
A circular blade sign for The Johor Collection visitor centre was mounted on a bracket arm at the entrance, displaying the brand’s logo mark on a white circular face with a gold border ring. Round projecting signs of this style are well suited to heritage or boutique developments where a traditional inn or shophouse-style sign profile is preferred over a standard rectangular fascia board — they project at 90 degrees to the building face, making them readable from along the approach path rather than only from directly in front.
Round projecting sign — “THE JOHOR COLLECTION” circular blade sign on bracket arm · Made by A&T, JB

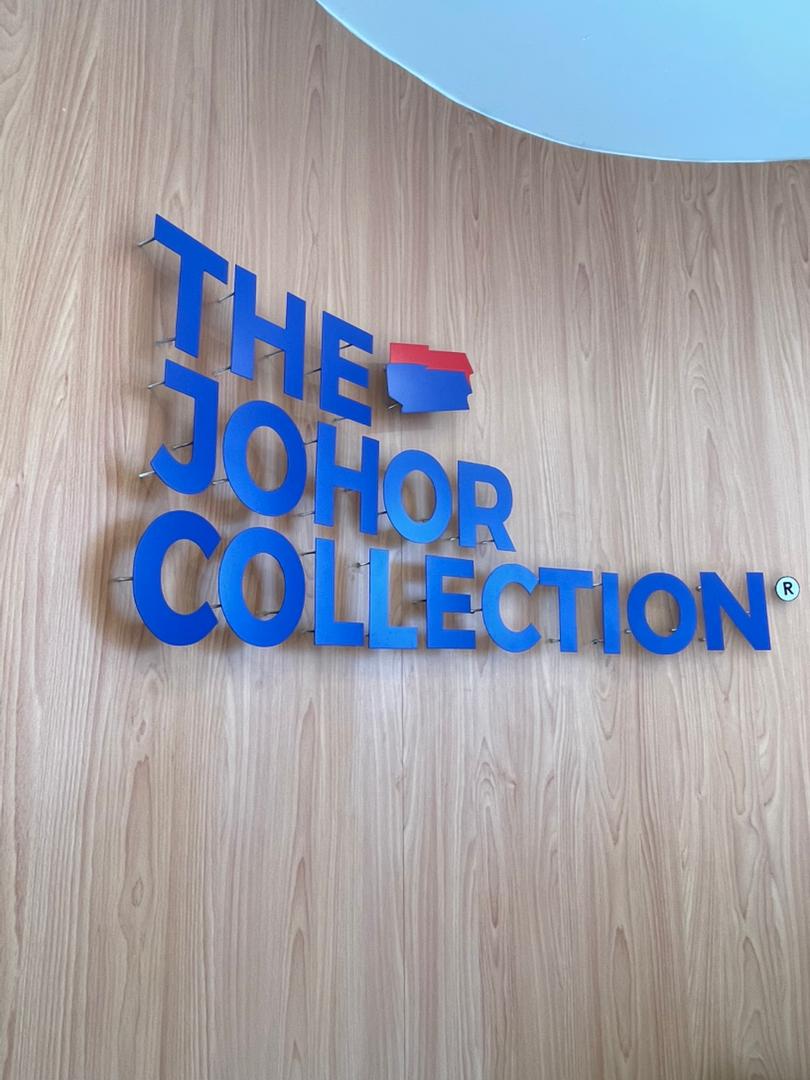

Indoor 3D Wall Lettering — The Johor Collection
Inside the visitor centre, full-colour 3D acrylic lettering for “THE JOHOR COLLECTION” — including the brand’s flag graphic element — was mounted on the interior feature wall above the reception area. The letters are produced in the brand’s royal blue with the red-and-blue flag logo detail reproduced accurately at three-dimensional scale. This type of interior brand wall serves as the primary brand expression point inside the facility and is the most photographed element of most visitor-facing spaces.
Indoor 3D wall lettering — “THE JOHOR COLLECTION” full-colour acrylic letters on interior feature wall · Made by A&T, JB

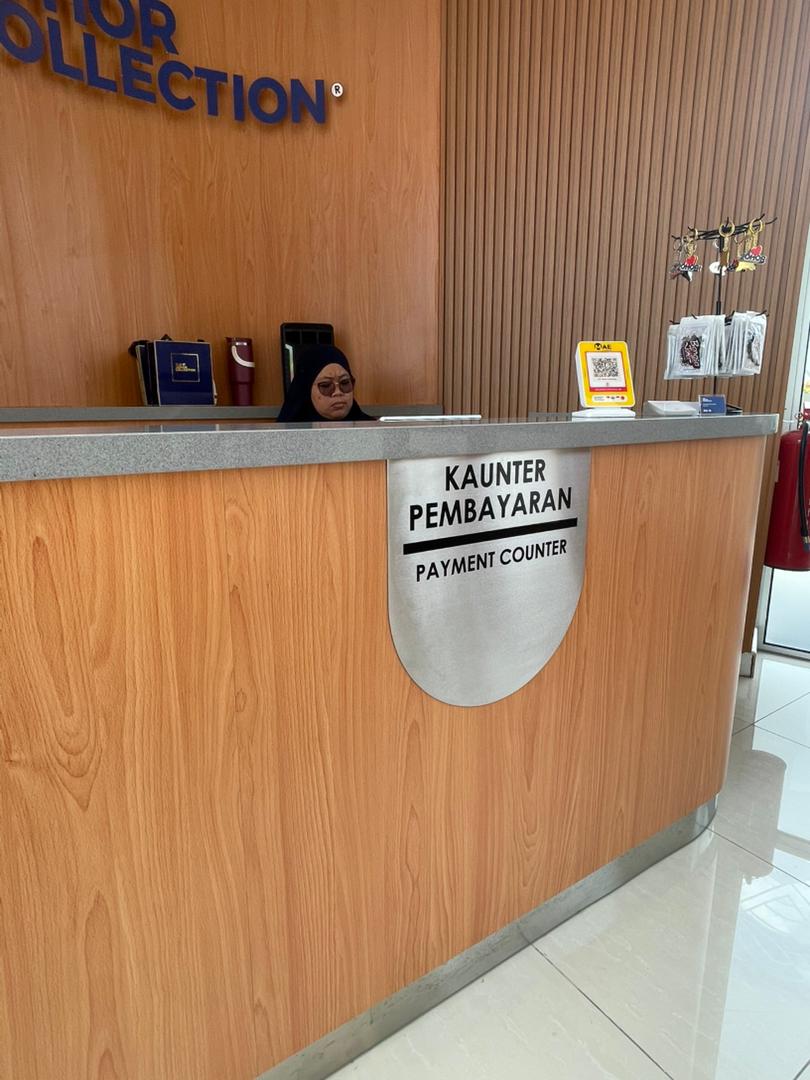

Counter Identification Panel — Stainless Steel with Etching
A stainless steel identification panel was produced for the payment counter, displaying “KAUNTER PEMBAYARAN / PAYMENT COUNTER” in bilingual format with an etched divider line between the Bahasa Malaysia and English text. The panel uses a brushed stainless finish with a rounded lower profile, mounted directly onto the counter fascia. Etched stainless steel panels are the preferred choice for counter and room identification in government facilities — durable, tamper-resistant, and consistent with the premium material specification of the visitor centre interior.
Counter identification panel — “KAUNTER PEMBAYARAN / PAYMENT COUNTER” stainless steel etched panel · Made by A&T, JB

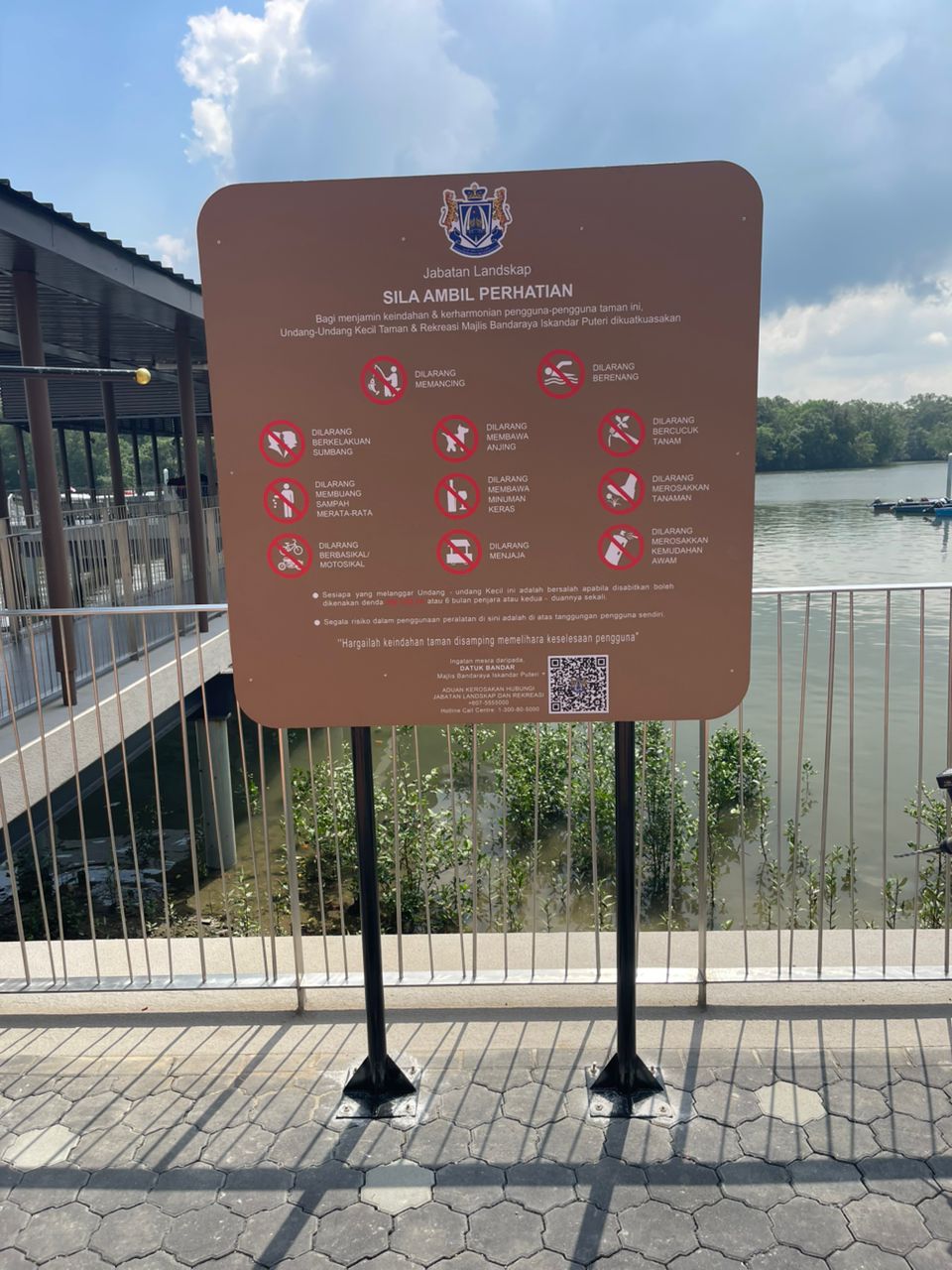

Regulatory Notice Boards — Jabatan Landskap
Multiple Jabatan Landskap “Sila Ambil Perhatian” regulatory notice boards were produced and installed across the site — at the landscaped park area and at the waterfront deck. Both boards carry the MBIP crest, the full set of park usage rules with pictogram icons, penalty clauses, and a QR code. The larger waterfront board is mounted on a freestanding twin-post frame; the park-area board uses a single post. Both are produced in the site’s signature brown with white text and graphics, maintaining visual consistency with the rest of the wayfinding system across the development.
Regulatory notice board — Jabatan Landskap “Sila Ambil Perhatian” waterfront panel, twin-post mount · Made by A&T, JB

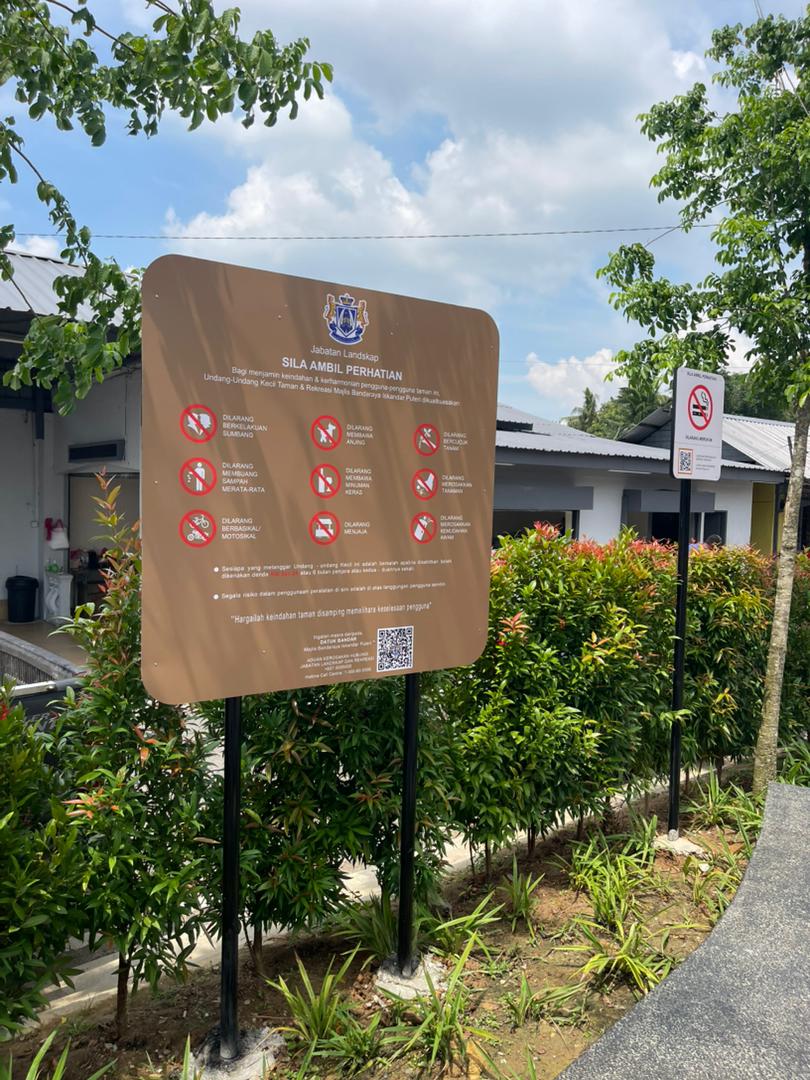

Regulatory notice board — park area installation, single post mount · Made by A&T, JB

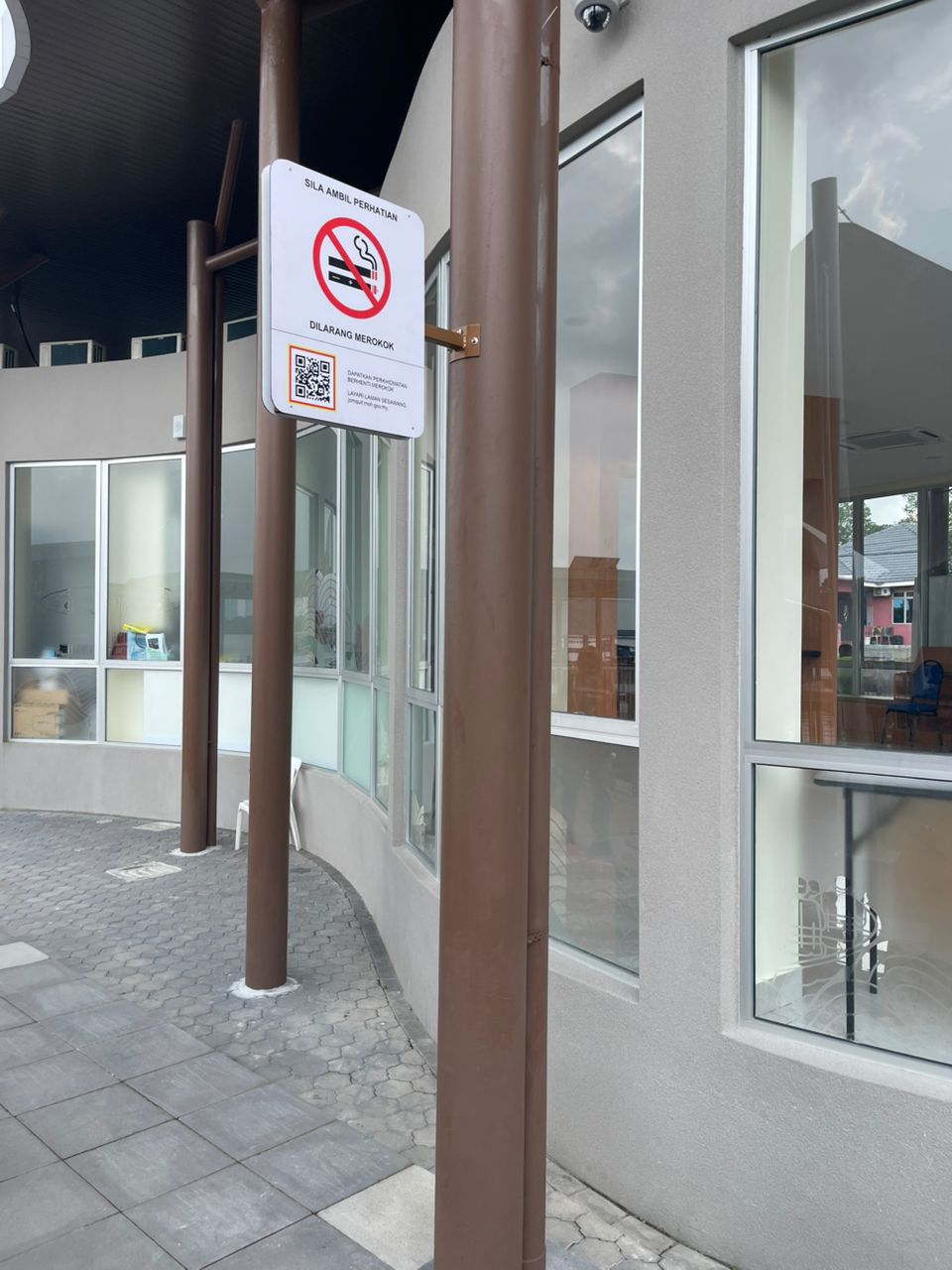

Toilet Signs & No Smoking Notices
Site-wide facility signs were produced to match the development’s colour palette — toilet identification plaques in the site’s brown finish with white icon graphics, and “Dilarang Merokok” no smoking notices mounted on structural columns throughout the covered walkway areas. The no smoking panels include a QR code linking to the national quit smoking programme, in compliance with current Ministry of Health requirements for public facilities.

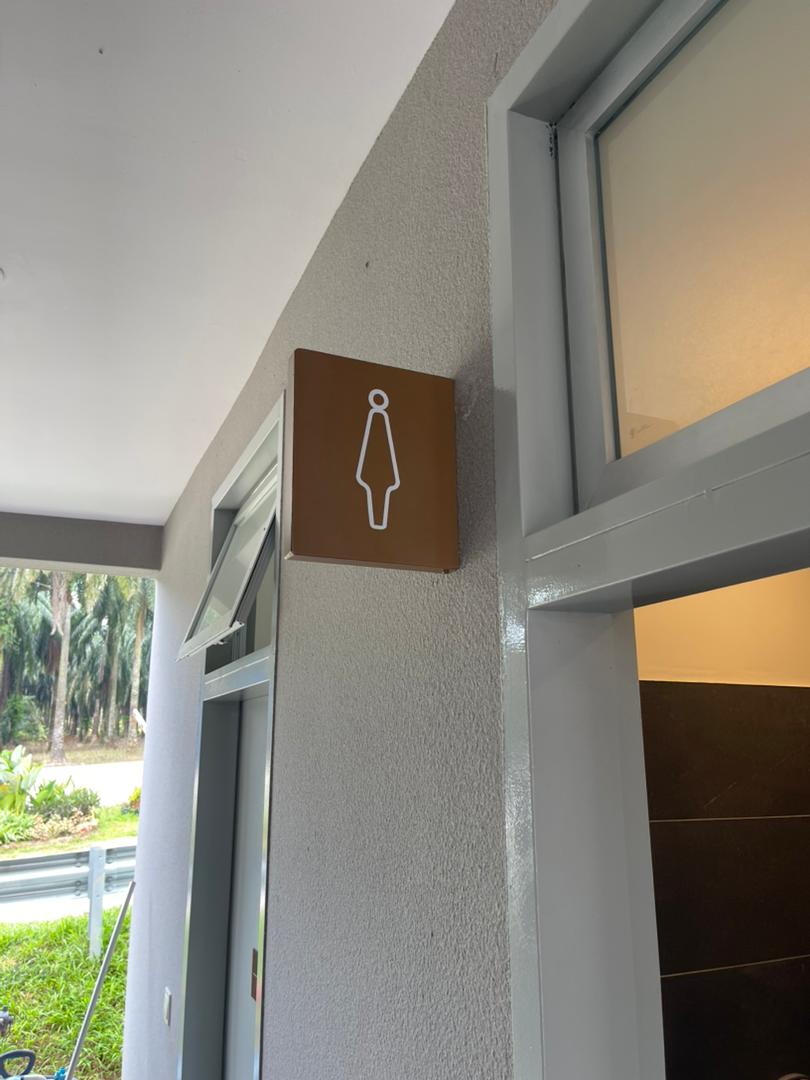

Toilet identification plaque — site-themed brown finish with white icon · Made by A&T, JB
No smoking notice — “Dilarang Merokok” column-mounted panel with QR code · Made by A&T, JB
What This Project Demonstrates
Government and infrastructure projects require full-site signage coordination
A development like Kampung Sungai Melayu is not a single signboard brief — it is a complete environmental signage system that needs to function consistently across outdoor landmarks, wayfinding, retail, indoor branding, and regulatory compliance signage simultaneously. Every element uses the same colour palette, material language, and bilingual text format, so the site reads as one cohesive environment rather than a collection of individually ordered signs. A&T’s ability to handle the full scope — from large-format waterfront landmark lettering to small toilet plaques — through a single supplier made it straightforward for the main contractor to manage the signage delivery as one package rather than coordinating multiple vendors.
Contractor-supplied signage packages simplify project delivery
For main contractors working on government or developer projects, engaging a signage supplier that can handle every sign type across the development — outdoor, indoor, wayfinding, and regulatory — reduces coordination overhead significantly. A&T works directly with main contractors on projects of this type, providing shop drawings for approval, managing production lead times to fit the construction handover schedule, and delivering installation as part of the package. Contractors do not need to separately source a wayfinding specialist, an indoor signage supplier, and a regulatory board printer — A&T covers all three from our Ulu Tiram factory.
Frequently Asked Questions
Can A&T handle signage packages for government or municipal development projects in Johor Bahru?
Yes. A&T has experience delivering complete signage packages for government and MBIP-linked developments — covering outdoor landmark signage, wayfinding systems, indoor branding, and regulatory notice boards. We work with main contractors directly and can provide shop drawings and design submissions as required for government project approvals.
What is the difference between a totem pylon and a standard directional sign?
A totem pylon is a freestanding structure that consolidates multiple destination directions into a single vertical sign at one location — it lists all key facilities and points the visitor in the right direction from a single decision point. A standard directional sign typically carries one or two destinations and is mounted closer to the destination it identifies. For a development with multiple facilities spread across a large site, a totem pylon at the entrance is usually the most practical starting point for visitor wayfinding.
What material is used for outdoor wayfinding panels in tropical climates like Johor?
Outdoor wayfinding panels in Malaysia are typically produced using aluminium composite panel (ACM) as the base — it is lightweight, weather-resistant, and does not rust. Graphics are applied using UV printing directly onto the panel surface or onto aluminium sub-panels. For post-mounted freestanding signs, the post and frame use galvanised or powder-coated steel. This combination handles the heat, humidity, and rainfall conditions of Johor’s climate effectively for long-term outdoor installation.
Can A&T match a specific colour palette or brand identity across all signage types in a development?
Yes — colour consistency across sign types is a standard part of A&T’s production process. For a development with a defined colour scheme like Kampung Sungai Melayu, we work from the approved brand palette and apply it consistently across spray-painted aluminium letters, UV-printed panel graphics, and powder-coated structural elements — so every sign across the site reads as part of the same visual system.
How early should a main contractor engage A&T for a signage package on a development project?
Ideally at the point where the development’s brand identity and facility list are confirmed — typically 6 to 8 weeks before the target installation date, to allow time for design submission, approval, and production. For larger developments with landmark structures or custom-fabricated elements, longer lead times may be required. Contact A&T early in the project timeline and we will advise on the production schedule based on the scope.
